61C540
Call Today!
|
||
61C540 Information: |

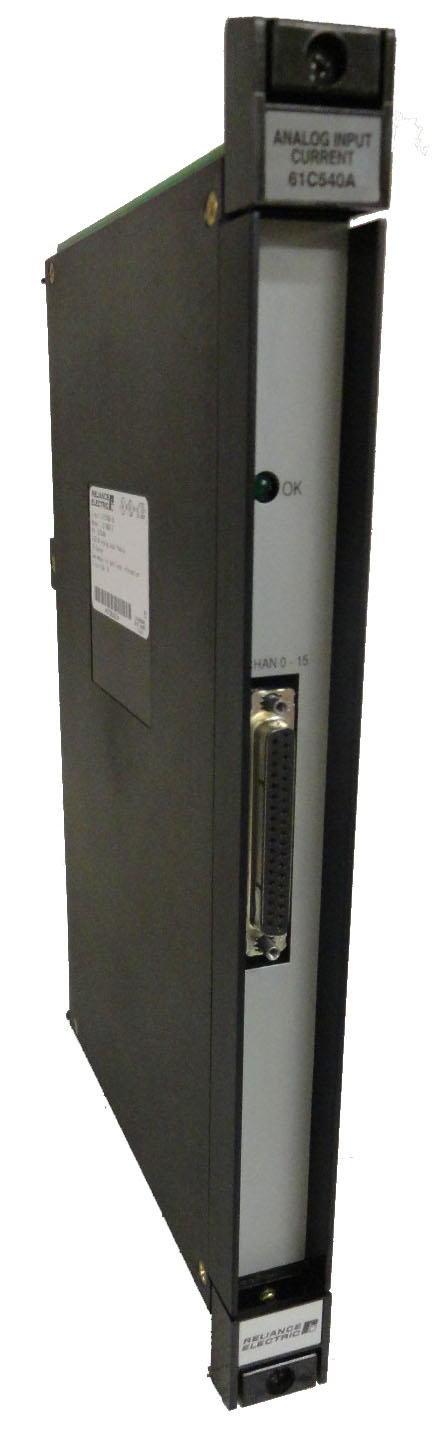

Reliance Automax. In stock ships today. 61C540. 61540. 61C540A. 16 Channel Analog Input. I/O module. Input/Output. DCS Network. 10 VDC Analog Input Module. 16 Channels. Analog inputs are wired to a separate termination panel (DIN rail or flat panel mounted). The termination panel communicates over a five foot cable to the Multibus INput module. Cables are supplied with termination panels. All 16 channels of analog input can be accommodated on a single termination panel. These modules can be mounted in either local or remote racks. An external power supply is required to supply the 4-20 mA transmitters on the current input card. The cards feature 16 channels of either voltage or current input. Broken wire detection. Running average 1-60 samples. Square root extraction. Scale or unscaled. 4 alarm set points per channel (low low, low, high, high high). 13 bit resolution plus sign. Automation calibration. They can also be used in local or remote racks.
