45C1A
Call Today!
|
||
45C1A Information: |

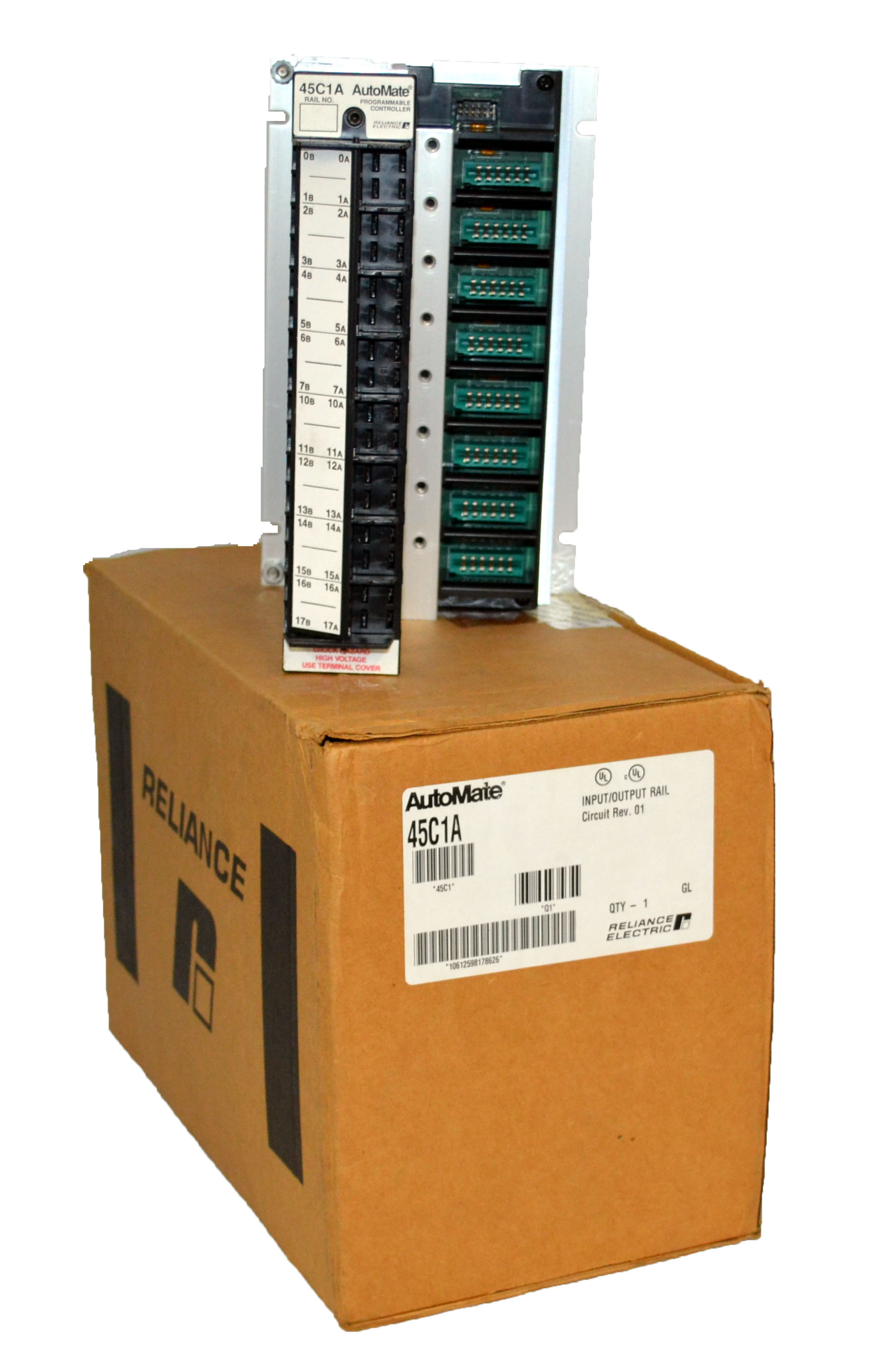

Reliance Automax. In stock ships today. 458C1A. I/O Channel Module. I/O Rail System. The I/O rail can accommodate a total of 16 I/O channels. When used with an Automate system the eight modules may be any combination of input or output modules. When used with a DCS 5000/Automax system a rail can hold either all input modules or all output modules, but not both. When used with a distributed power DCS 5000/Automax system a rail can hold any combination of input or output modules. Each I/O rail is made up of a rail (or chassis), a terminal strip, and a motherboard. The rail is made of aluminum and measures 9 inches. The rail\'s terminal strip provides a termination for field wiring, mounting slots for plug-in I/O modules, a place for labeling your wiring, and an insulated safety cover over the terminals. There are two terminals (A, B) per I/O channel. Terminal A is the upper terminal and terminal B is the lower terminal. The type of I/O you used will determine which terminal is common or power.
