61C613 Information: |

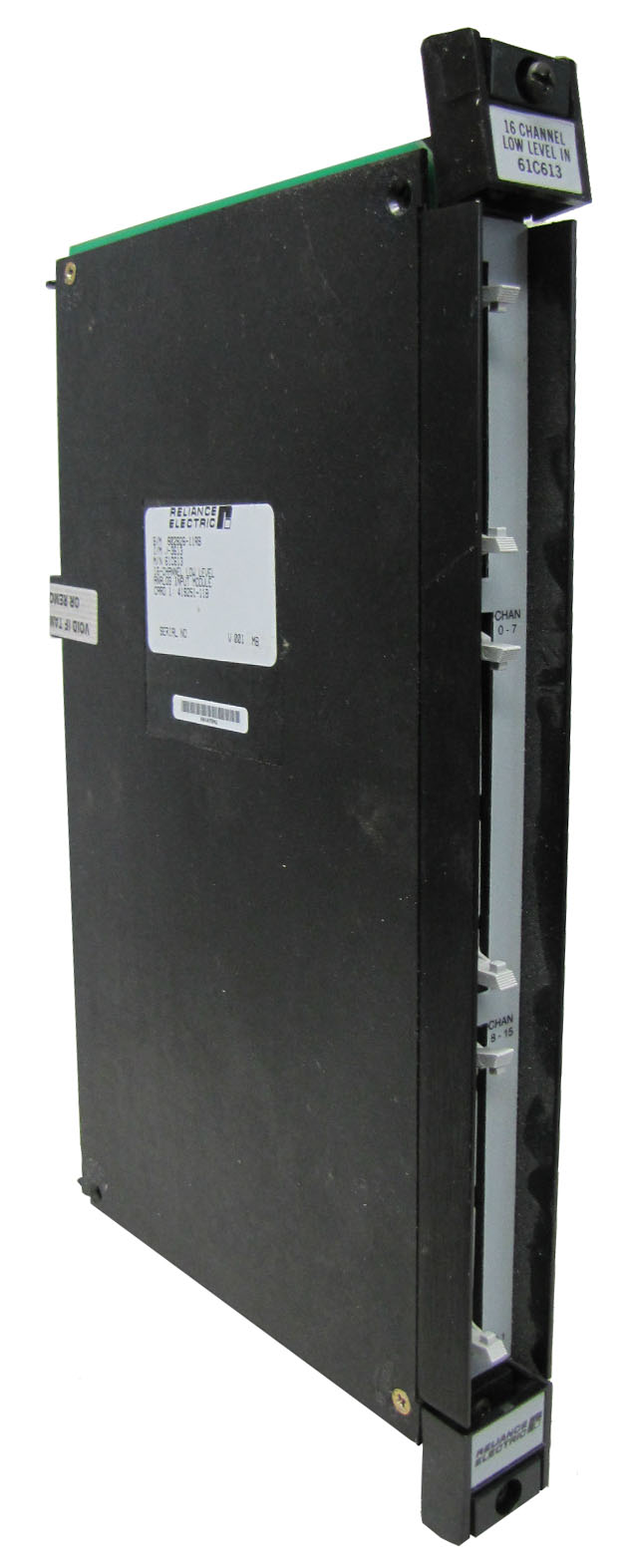

Reliance Automax. In stock ships today. 61C613. 61613. 61C613A. Analog/Thermocouple Input Module. The analog input module features 16 individually-isolated analog inputs capable of multiplexing signals from any combination of thermocouples and low or high level voltages. It must be used in conjunction with the 61C614 Thermocouple/Voltage Termination Panel. The module provides automatic linearization and cold junction compensation for type B, E, J, K, R, and T thermocouples. Thermocouples may be read in either degrees Fahrenheit or Centigrade. Thermocouple inputs can be read as often as once every 110 milliseconds. Thermocouple inputs require the use of the 61C614 Thermocouple/Voltage Termination Panel. Each analog input channel has 200 volt channel-to-channel isolation and 1000 volt isolation to logic common. Each channel may be independently configured to accept voltage ranges from +/- 12.5 mVolts through +10.0 Volts. The Analog/Thermocouple Input Module features sixteen input channels. Thermocouple, low level analog, or combination. Automatic linearization and cold junction compensation. Offset and span compensation for each channel. 12-bit or 14-bit resolution (software selectable). Dual slope integrating A/D converter. 200 Volt channel to channel isolation.
