45C305 Information: |

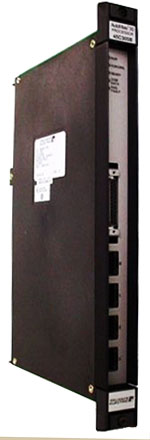

Reliance Automax. In stock ships today. 45C305. 45305. Automate 30 Processor Card. 4K x 16 Application Memory - Enhanced Software. The processor card is the key to the power, speed, and flexibility of the Automate 30 controller. When it is plugged into a rack with power supply and I/O, a stand-alone controller is created. The enhanced software executive includes additional special purpose instructions for more sophisticated tasks such as file handling, ASCII communication, interprocessor communication, remote numerical I/O and PID control. The processor card includes these features: Capability to address 512 digital I/O, or 128 analog, or combinations. 512 internal codes. 1024 registers. 128 numerical I/O. 4K or 8K non-volatile R/W application memory. 2.0 microseconds per ladder instruction execution speed. Extensive on-line diagnostics. Motorola MC 68008 microprocessor solves advanced functions. Custom LSI Boolean Processor solves ladder diagrams at high speed. Intel multibus compatible. RS-232 communication port. 9600 baud. I/O communication ports.
