61C351 Information: |

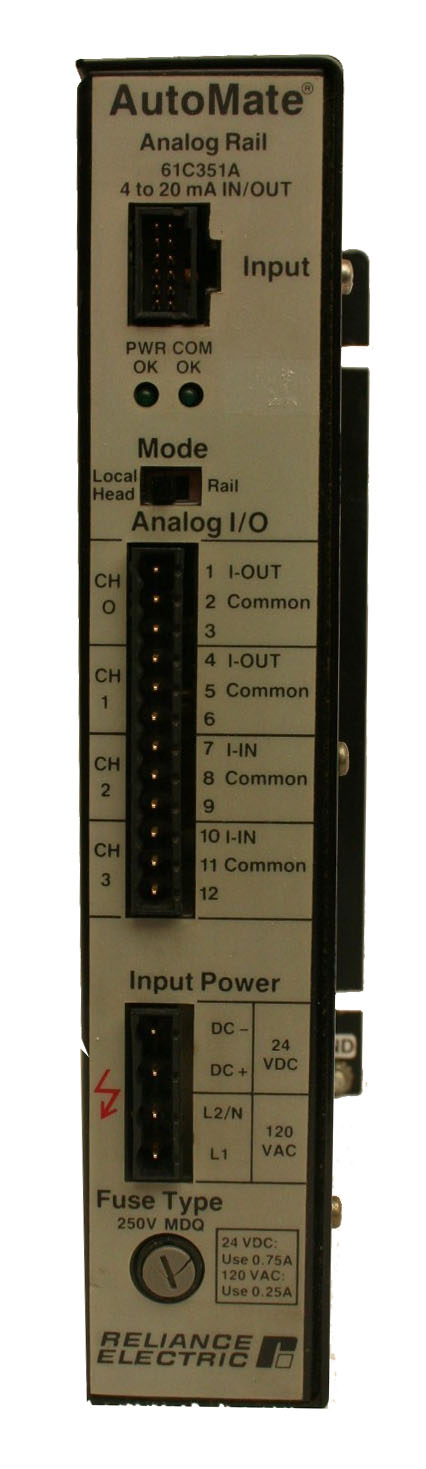

Reliance Automax. In stock ships today. 61351. 61C351. 4-20 MADC Analog Rail. 2 Input Channels. 2 Output Channels. AC/DC. Input/Output. I/O Remote Head. DCS 5000 Network. Reliance Automate Analog Rail. The Analog Rail Module is configured depending upon the mode in which it is being used. The Analog Rail Module data may also be accessed in the middle of the scan (as opposed to the end of the scan) using the appropriate number of Analog In (AIN) blocks. The AIN block will set the over-ranger or under-range bits if applicable. The AIN block is used to read inputs from the Analog Rail module. The Analog Rail Module is used in the Local Head mode when the host is a DCS 5000/AutoMax Remote I/O Head. Configuration task line number, 1-32767. The Analog Rail module is used in the Rail mode when the host is a Power Module Interface (PMI) Processor. When programming the Analog Rail module, it is recommended that you monitor the state of the over-range and under-range bits for the input channels. You can check the status of the appropriate bits directly if they were defined in the configuration. You can also use the BASIC expression AND with the variable name assigned to the input channel to mask off the 12 bits of analog data and read the values in the over-range and under-range bits. Any non-zero result means that the value is out of range.
